Oracle

The Oracle Database Integration provides real-time visibility into the performance of your Oracle database system. This integration is useful for monitoring database instances, CPU utilization, transactions, and other Oracle-specific metrics.

For more information on the Oracle Integration, navigate to the Oracle Demo Project Repository.

Prerequisites

1 Infra Agent

Infrastructure Agent (Infra Agent) v1.6.1+. To install the Infra Agent, see our Installation Guide

2 Elastic Superuser

Oracle Server v10.2+

Setup

Step 1: Grant Permissions

Assign permissions according to the database user:

GRANT SELECT ON V_$SESSION TO <username>;
GRANT SELECT ON V_$SYSSTAT TO <username>;
GRANT SELECT ON V_$RESOURCE_LIMIT TO <username>;
GRANT SELECT ON DBA_TABLESPACES TO <username>;
GRANT SELECT ON DBA_DATA_FILES TO <username>;

Step 2: Access Integrations

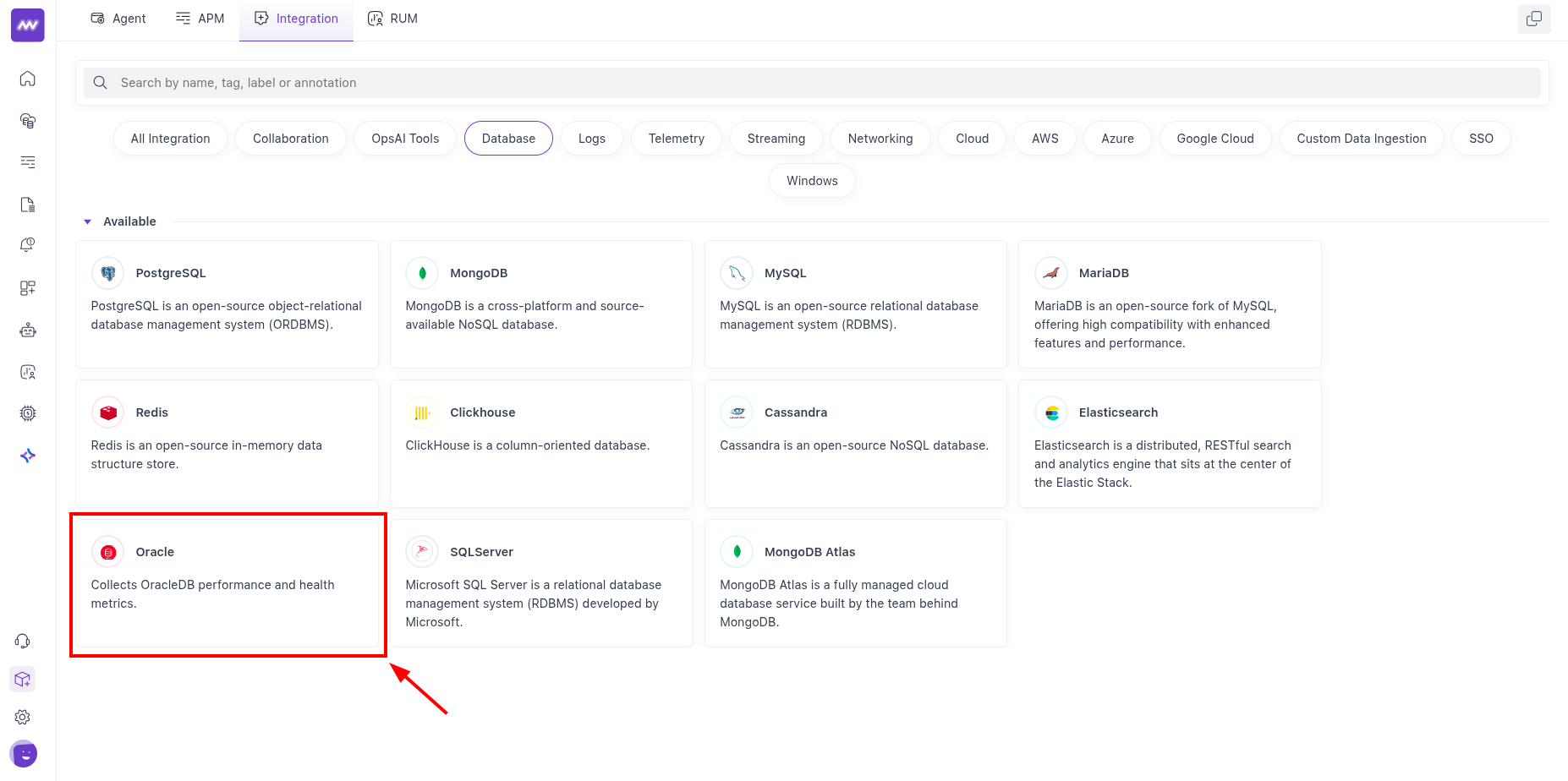

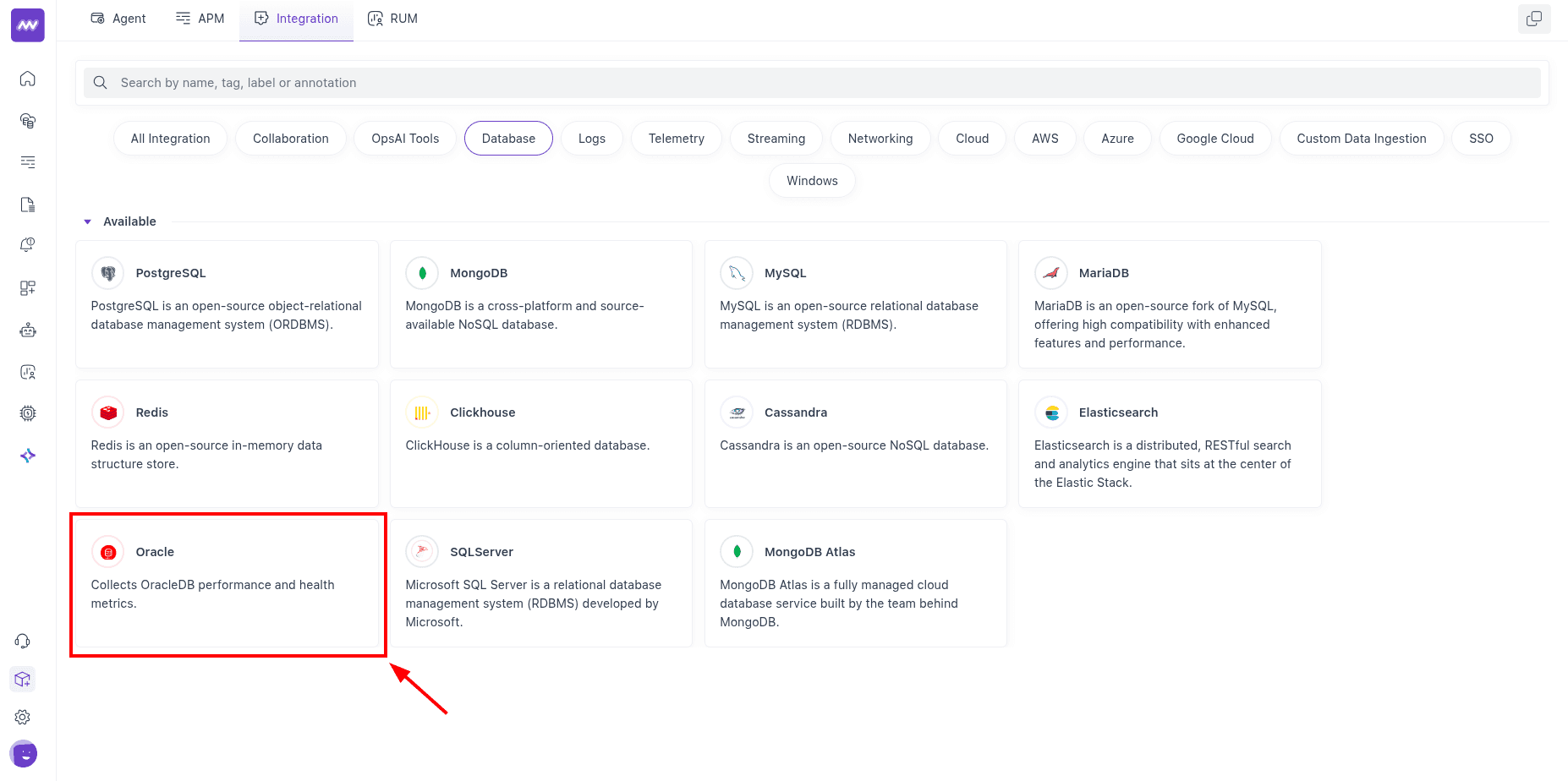

Log in to Middleware, navigate to the Installations Page in the bottom left corner, select integrations and click Oracle:

Step 3: Enable Oracle Integration

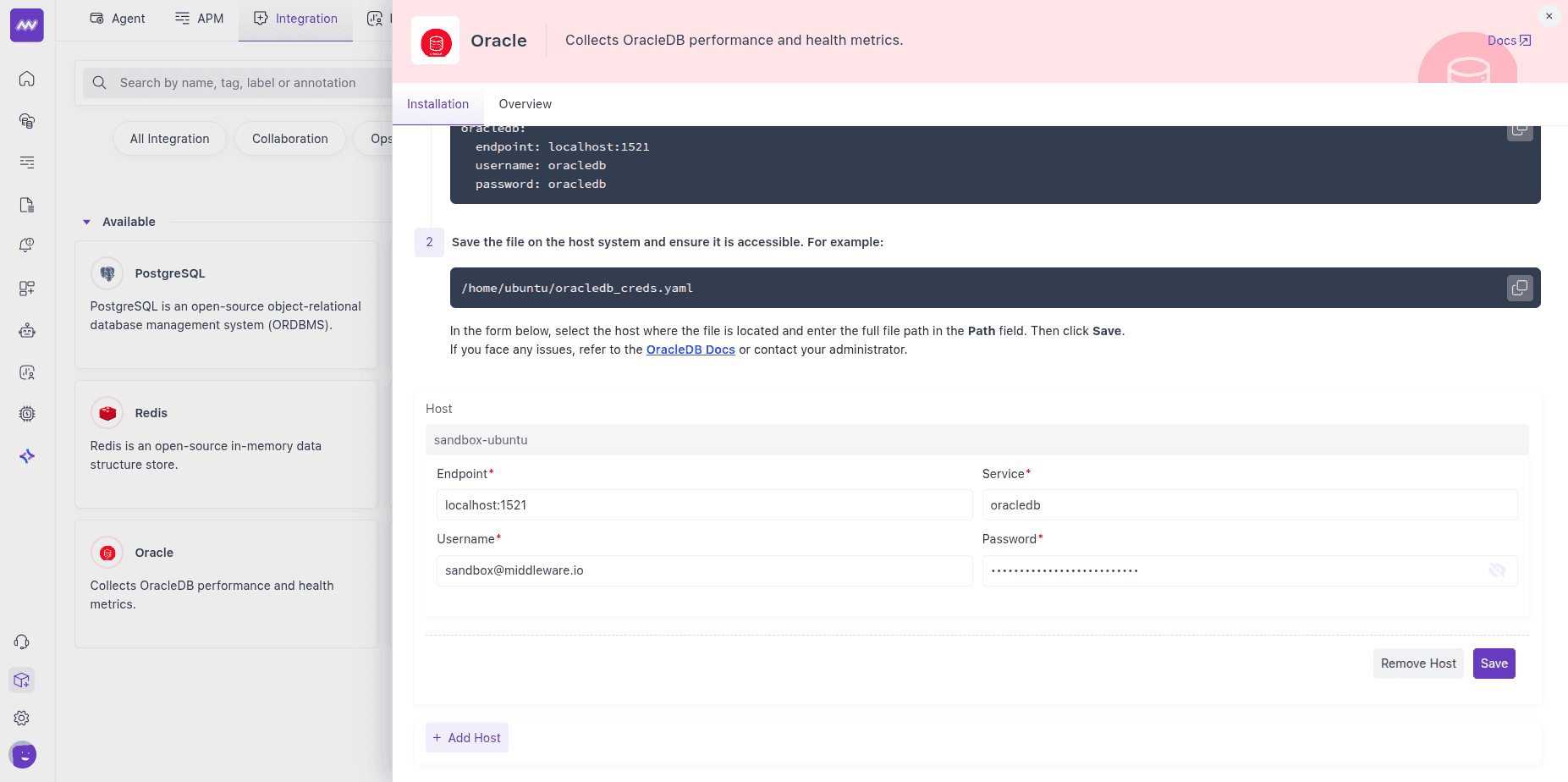

Click on Add Host and fill out your Oracle configuration details:

Navigate to the Host Configuration to learn more about the below input fields.

Visualize Your Data

Default Oracle Dashboard

Quickly access your Oracle data with Middleware’s default Oracle Dashboard. Navigate to the Dashboard Builder and select the Oracle Dashboard:

Create your own widget from scratch. Navigate to the Dashboard Builder and select the dashboard you would like to create a widget in. Select Add New Widget and choose the Oracle data source.

Metrics Collected

Metric	Description
`oracledb.cpu_time`	Cumulative CPU time (in seconds)
`oracledb.enqueue_deadlocks`	Total number of deadlocks between table or row locks in different sessions
`oracledb.exchange_deadlocks`	Number of times that a process detected a potential deadlock when exchanging two buffers
`oracledb.executions`	Total number of calls (user and recursive) that executed SQL statements
`oracledb.logical_reads`	Number of logical reads
`oracledb.hard_parses`	Number of hard parses
`oracledb.parse_calls`	Total number of parse calls
`oracledb.pga_memory`	Session PGA (Program Global Area) memory
`oracledb.physical_reads`	Number of physical reads
`oracledb.user_commits`	Number of user commits
`oracledb.user_rollbacks`	Number of times users manually issue a ROLLBACK statement or an error occurs during a user's transaction
`oracledb.sessions.usage`	Count of active sessions
`oracledb.processes.usage`	Current count of active processes
`oracledb.processes.limit`	Maximum limit of active processes, `-1` if unlimited
`oracledb.sessions.limit`	Maximum limit of active sessions, `-1` if unlimited
`oracledb.enqueue_locks.usage`	Current count of active enqueue locks
`oracledb.enqueue_locks.limit`	Maximum limit of active enqueue locks, `-1` if unlimited
`oracledb.dml_locks.usage`	Current count of active DML (Data Manipulation Language) locks
`oracledb.dml_locks.limit`	Maximum limit of active DML (Data Manipulation Language) locks, `-1` if unlimited
`oracledb.enqueue_resources.usage`	Current count of active enqueue resources
`oracledb.enqueue_resources.limit`	Maximum limit of active enqueue resources, `-1` if unlimited
`oracledb.transactions.usage`	Current count of active transactions
`oracledb.transactions.limit`	Maximum limit of active transactions, `-1` if unlimited
`oracledb.tablespace_size.limit`	Maximum size of tablespace in bytes, `-1` if unlimited
`oracledb.tablespace_size.usage`	Used tablespace in bytes
`oracledb.db_block_gets`	Number of times a current block was requested from the buffer cache (Disabled)
`oracledb.consistent_gets`	Number of times a consistent read was requested for a block from the buffer cache (Disabled)

Host Configuration

Input Field	Description
`endpoint`	Endpoint used to connect to the Oracle server. Must be in the format of `host:port`
`password`	Password for the Oracle connection (special characters are allowed)
`service`	Oracle Service that the receiver connects to
`username`	Username for the Oracle connection

Next Steps

Need assistance or want to learn more about Middleware? Contact our support team in Slack.
