Correlation with Data

Correlate what a real user did in the browser with the exact backend work your services performed, and the log line(s) those services emitted using one continuous context. This page walks you through a RUM session → the backend trace → the attached logs, explaining what each panel means and how to read it confidently.

What you get

• A single request “thread” across browser, services, and logs (via <trace_id> / <span_id>).
• Visual timing (flame graph) to spot where time is actually spent.
• Request/response and headers to validate behaviour and caching.
• Log details to confirm status, payload sizes, and errors.

Prerequisites

• RUM SDK initialised with browser tracing enabled, so network events (XHR/Fetch) carry trace context.
• Backend services instrumented for tracing and configured to propagate W3C Trace Context (traceparent / tracestate) through gateways/queues.
• Logging is configured to enrich log events with <trace_id> and <span_id> (so the Logs tab can stitch them automatically).

What is “correlation” in RUM?

Correlation means stitching a single user action in the browser (a RUM event such as an XHR/Fetch) to the exact backend trace that handled it and to the log entries those services emitted so that you can follow one request end-to-end.

Middleware achieves this by propagating and storing shared identifiers, primarily <trace_id> and <span_id>, across RUM, tracing, and logging. When these IDs match, you are looking at the same request across all three data types.

How Middleware stitches RUM → Traces → Logs

• Browser (RUM SDK)
  • Auto-instruments XHR/Fetch and starts/joins a distributed trace.
  • Attaches W3C Trace Context headers (traceparent, tracestate) carrying <trace_id>/<span_id> on the network request.
  • Captures browser timings and attributes (e.g., resource.duration, http.url, browser.name) as well as the session ID (session.id).
  • Sends the RUM event with these fields to Middleware.
• Edge / Service (Tracing)
  • Your tracing library extracts the incoming context from traceparent.
  • It continues the same trace and creates server spans (e.g., app-api-v2 span), preserving <trace_id> and generating child <span_id> values.
  • Spans are sent to the Middleware’s trace store.
• Service Logging (Logs)
  • Your logger is enriched to include <trace_id>/<span_id> on every relevant log event (request logs, errors, DB warnings, etc.).
  • Logs are shipped to Middleware and indexed by these IDs.
• Index & Link
  • Middleware indexes RUM events, traces, and logs on <trace_id> (and also on session.id/time).
  • From a RUM event, the UI can unambiguously fetch the trace and the logs that share the duplicate IDs.

Start from the RUM Session (front end)

Open RUM → Sessions and select a session that interests you (e.g., a user reporting slowness). In the left pane, choose Events. Filter for Type: xhr and click the network event (e.g., GET /api/v1/account/init).

You’re selecting the exact browser request that the user’s page fired. From here, Middleware pivots you to the backend view for this very request.

What you see on the right:

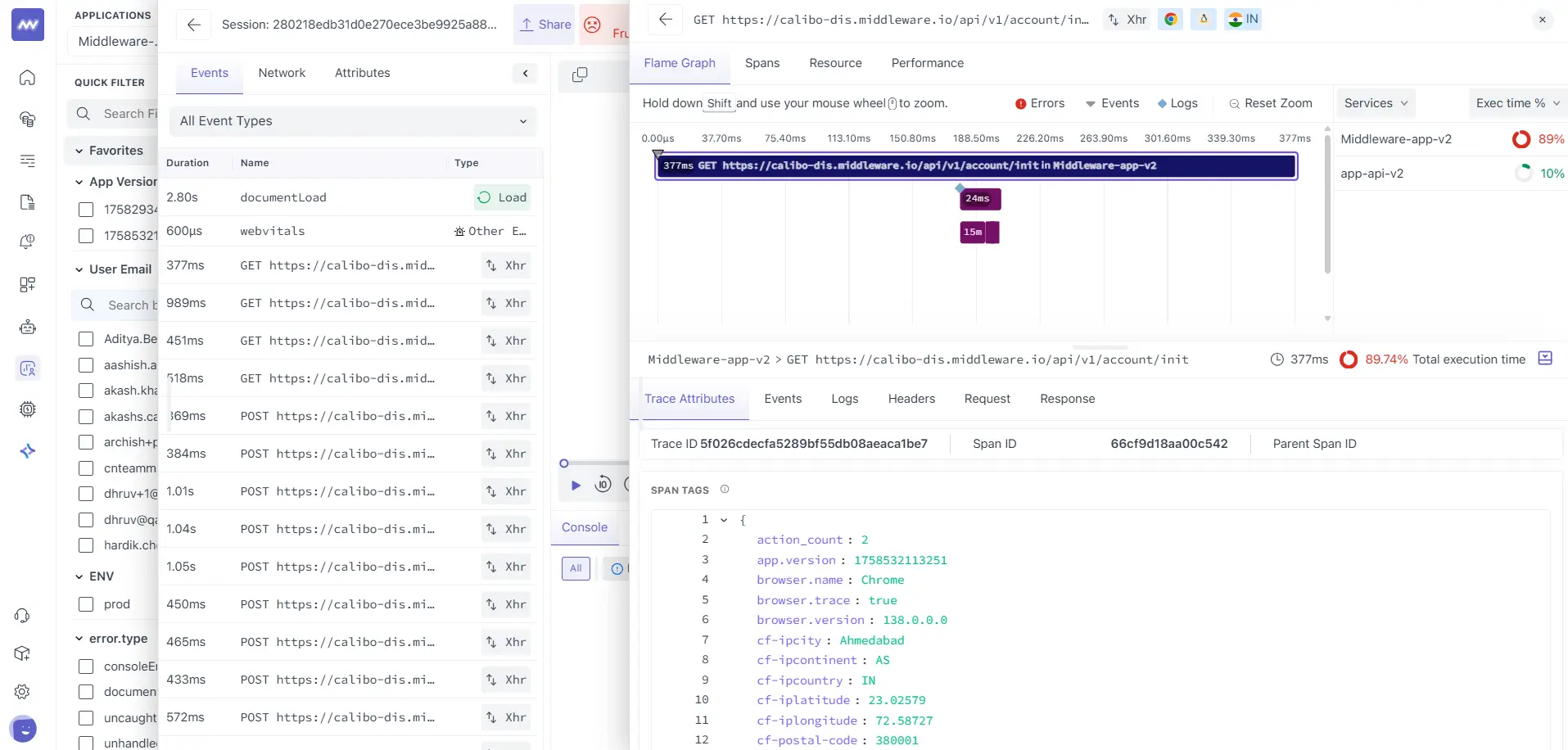

• Flame Graph (top): stacked spans across services that handled this request.
• Services panel / Exec time % (right): Which service took the most time.
• Tabs (bottom): Trace Attributes, Events, Logs, Headers, Request, Response.

Why it matters:

• This is already filtered to the same request your browser made. No manual search across products; you’re looking at one stitched timeline.

Read the Trace (How to Interpret the Panels)

1. The Flame Graph

• Each bar is a span; its width is duration.
• Bars stack to show parent/child work (e.g., frontend gateway → app-api-v2 → DB).
• Zoom and hover to see where the latency sits. Long, wide bars are hot spots.

How to use it

• If the top bar is the HTTP handler and a child DB call dominates, you’ve found the bottleneck.
• If most of the time is spent before any server span, it’s likely due to network/TTFB/CDN issues.

2. Service Breakdown (Exec time %)

• A quick at-a-glance ranking of which service is responsible for most of the end-to-end time.

3. Trace Attributes (context you’ll rely on)

Open the Trace Attributes tab (it’s usually selected). You’ll see a merged view of browser and server attributes. Typical high-value fields:

Anchor the correlation on IDs: Write down <trace_id> and <span_id> from here; you’ll confirm them again in the Logs view. If they match, you’re unquestionably looking at the same request from browser → services → logs.

Jump to Logs (same request, same IDs)

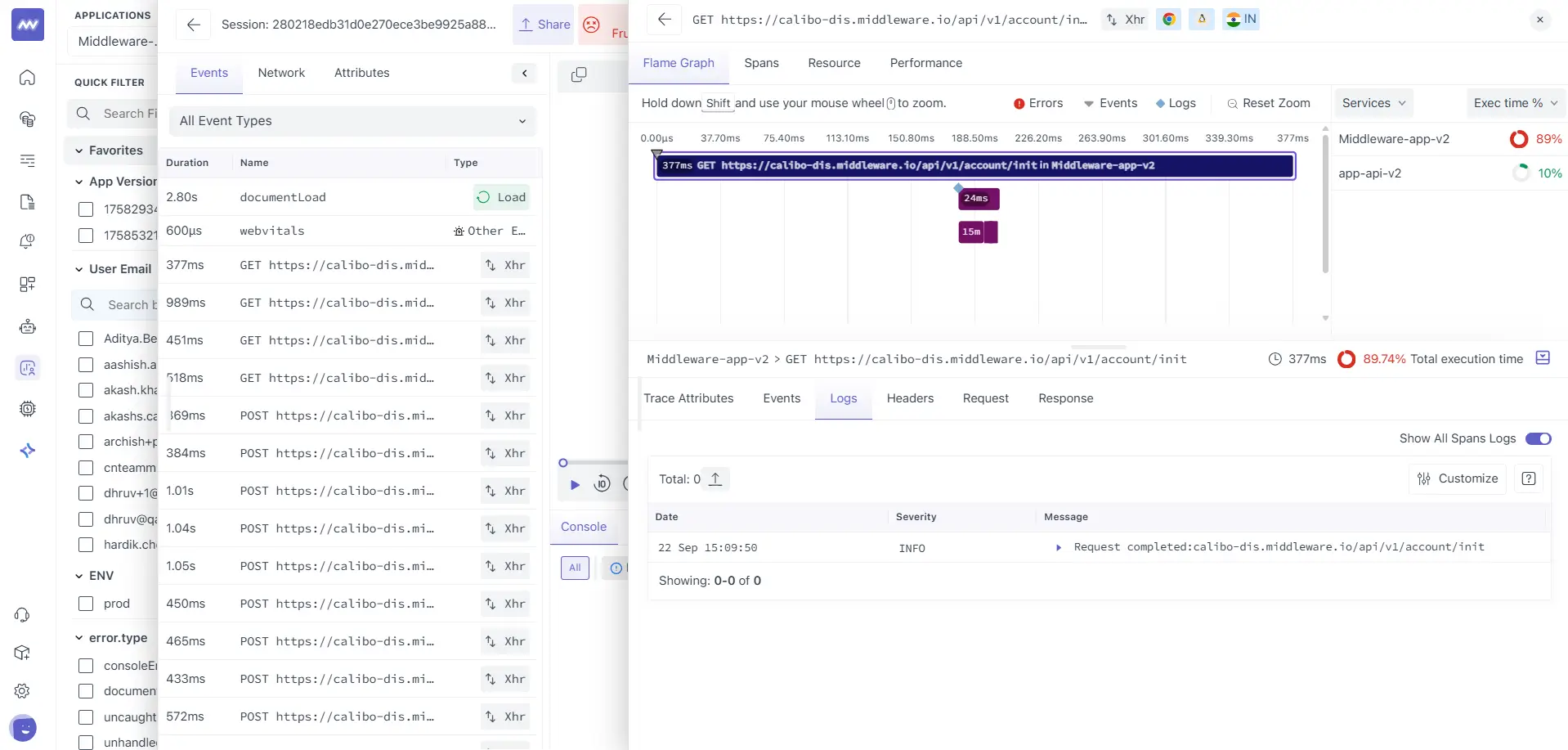

Click the Logs tab in the same right-hand inspector. You’ll see log entries scoped to this trace/span, no extra filters needed.

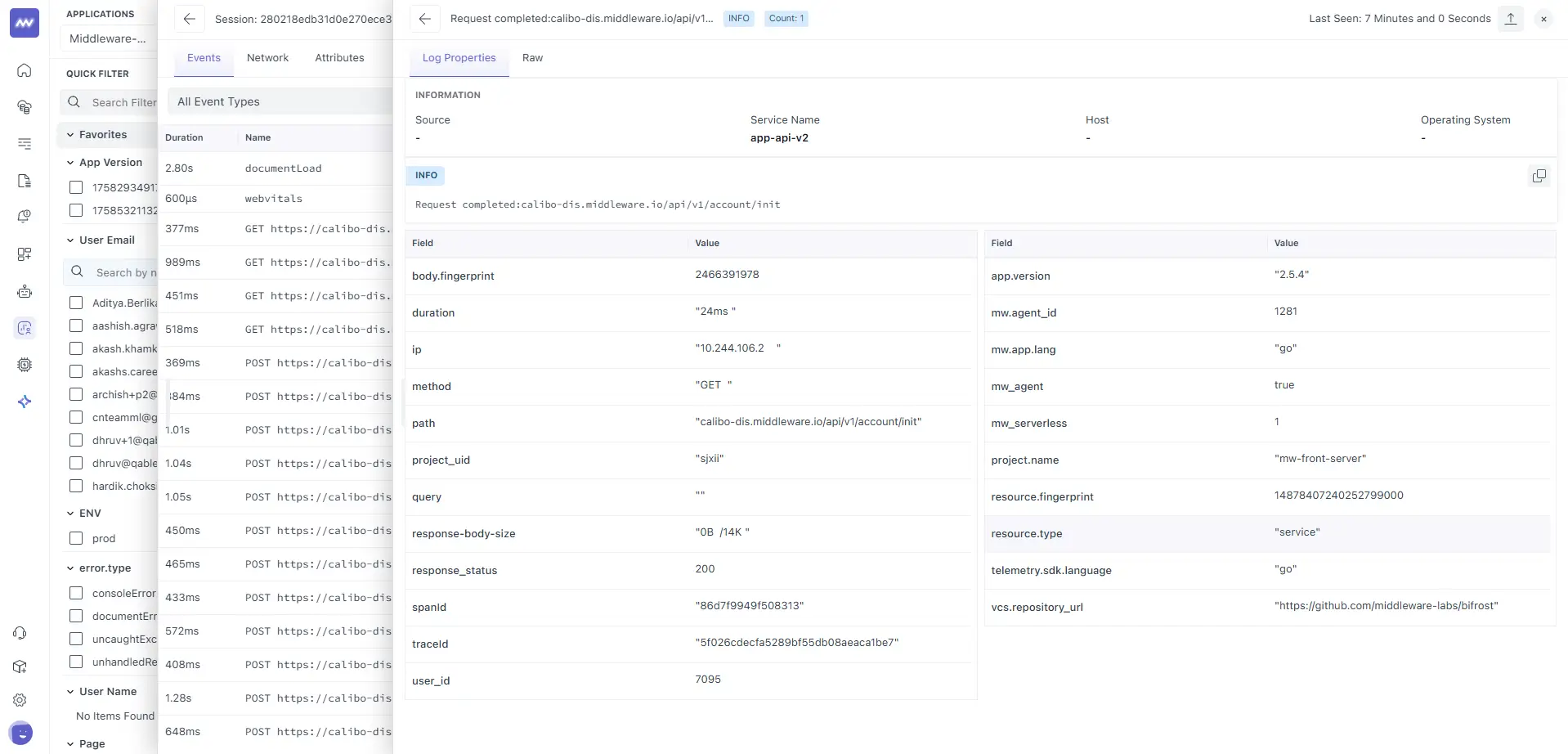

Open a log row to inspect its structured fields.

Key fields you’ll read here:

Sanity check: If the traceId here doesn’t match the Trace Attributes, your gateway/worker likely started a new trace. Ensure trace context headers are forwarded end-to-end.

Validate Payloads and Headers

Use the Request, Response, and Headers tabs to confirm:

• Auth headers present/valid; cache headers as expected.
• Response status/text and content length match what the browser saw.
• Mismatch examples to look for:
  • Server duration is small but resource.first_byte.duration is large → network/CDN or queueing before your app.
  • Response length differs between server and browser fields → compression or proxy mutation (expected with HTTP/2 + gzip/brotli).

Field Glossary (front-end timings)

These fields are reported by the browser and help you understand “time outside your code”:

• resource.connect.duration: TCP connect time.
• resource.ssl.duration: TLS handshake time.
• resource.first_byte.duration: Time until first byte (server + network + intermediaries).
• resource.download.duration: Time to read response from socket.
• resource.duration: Sum of the above (roughly connect → download).

Tip: Compare resource.first_byte.duration with the service log duration. If first_byte ≫ service duration, most latency happened before your application code returned (CDN, WAF, upstream, or network).

Troubleshooting Correlation

• No logs under the trace
  • Ensure your logger attaches <trace_id>/<span_id> and that log ingestion is enabled for the service.
  • Check sampling and log levels; the event might be filtered out.
• IDs don’t match between trace and logs
  • A proxy/queue/async worker can start a new trace. Forward traceparent headers and bind server spans to incoming context.
• The browser shows a long TTFB, but the service time is small
  • Investigate CDN/WAF, upstreams, or network segments. Use headers (age, via, server-timing) to attribute the gap.
• No browser.trace
  • Verify RUM init options; ensure CSP/ad-blockers aren’t disabling XHR/fetch instrumentation.
