Cassandra

The Cassandra Database Integration provides seamless access to your database performance metrics and enables users to effortlessly visualize crucial insights in a single dashboard. This integration is useful for teams that want to visualize total compaction tasks over time, read/write latency, and storage resource availability.

This integration works by pulling metrics from the database through the Middleware Host Agent. Metrics are ingested by attaching a Java Management Extension (JMX) receiver to your Cassandra cluster and sending your telemetry data to Middleware.

This integration is only supported for users with the default AllowAllAuthenticator authentication permissions.

Prerequisites

Middleware Host Agent (MW Agent) must be installed on your local machine. To install the MW Agent, see our Installation Guide.

Setup

Step 1: Access Integrations

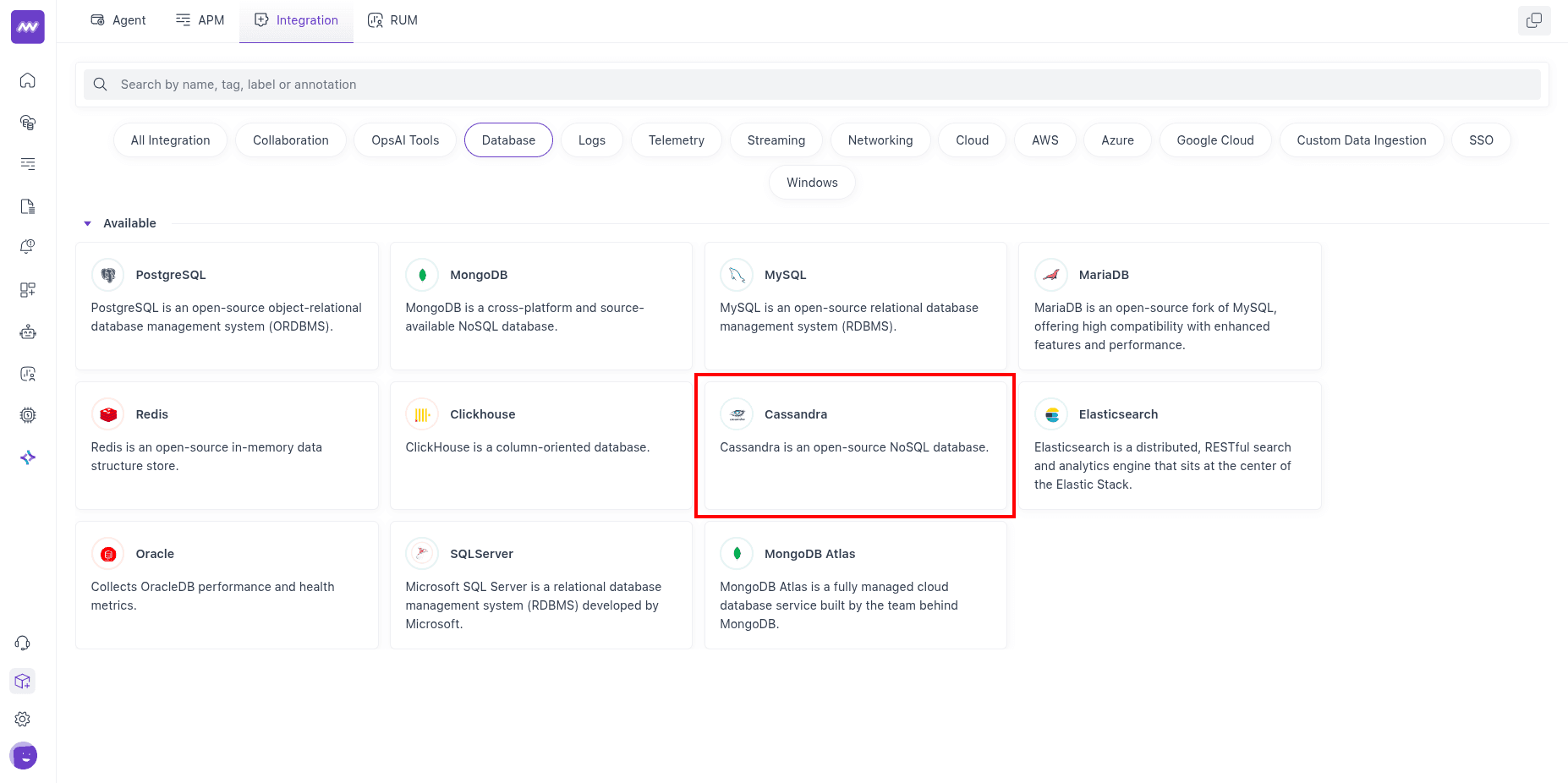

Login to your Middleware account, navigate to the Installations page in the bottom left corner, select All Integrations and click Cassandra

Step 2: Connect Cassandra Instance

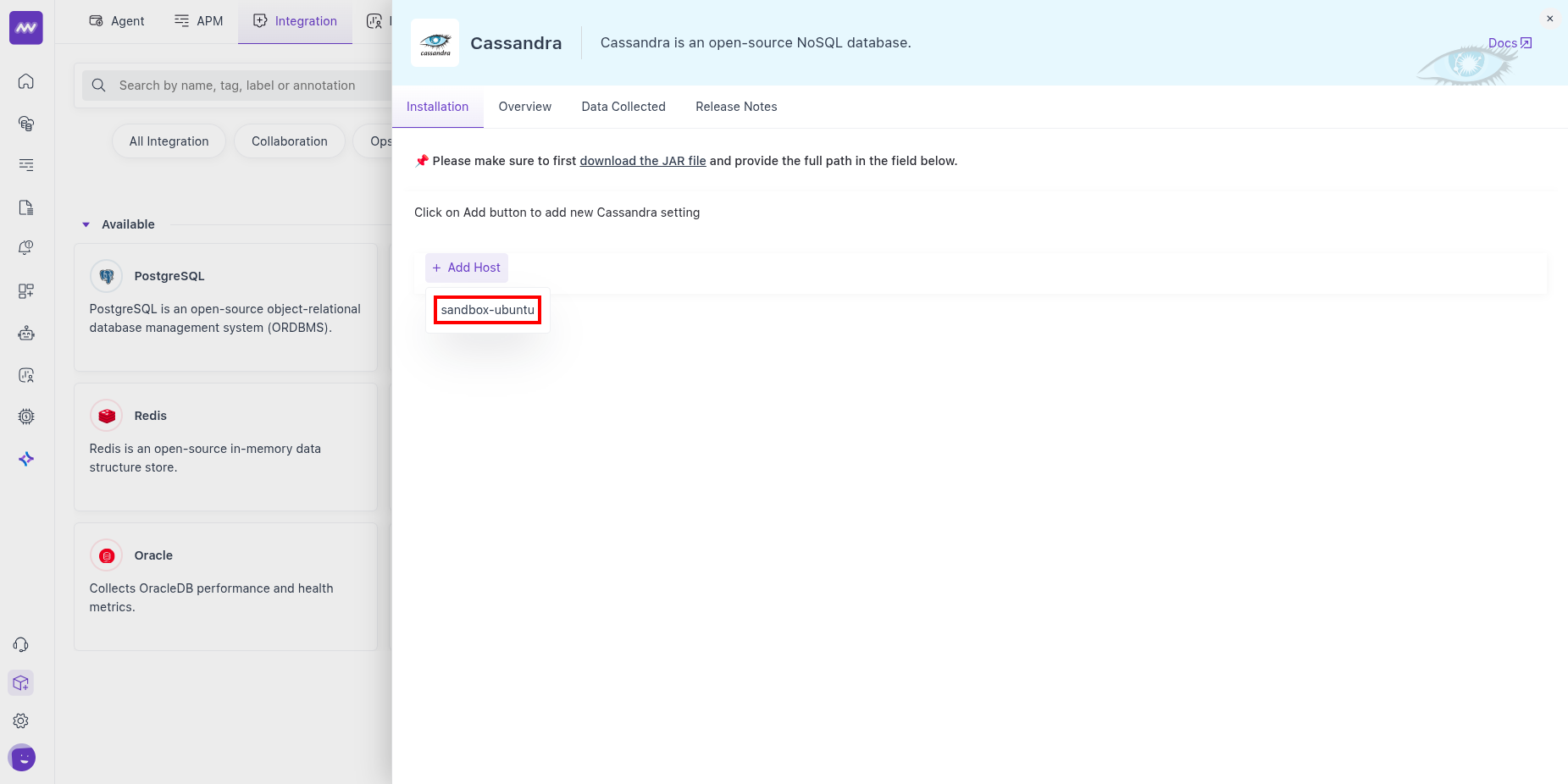

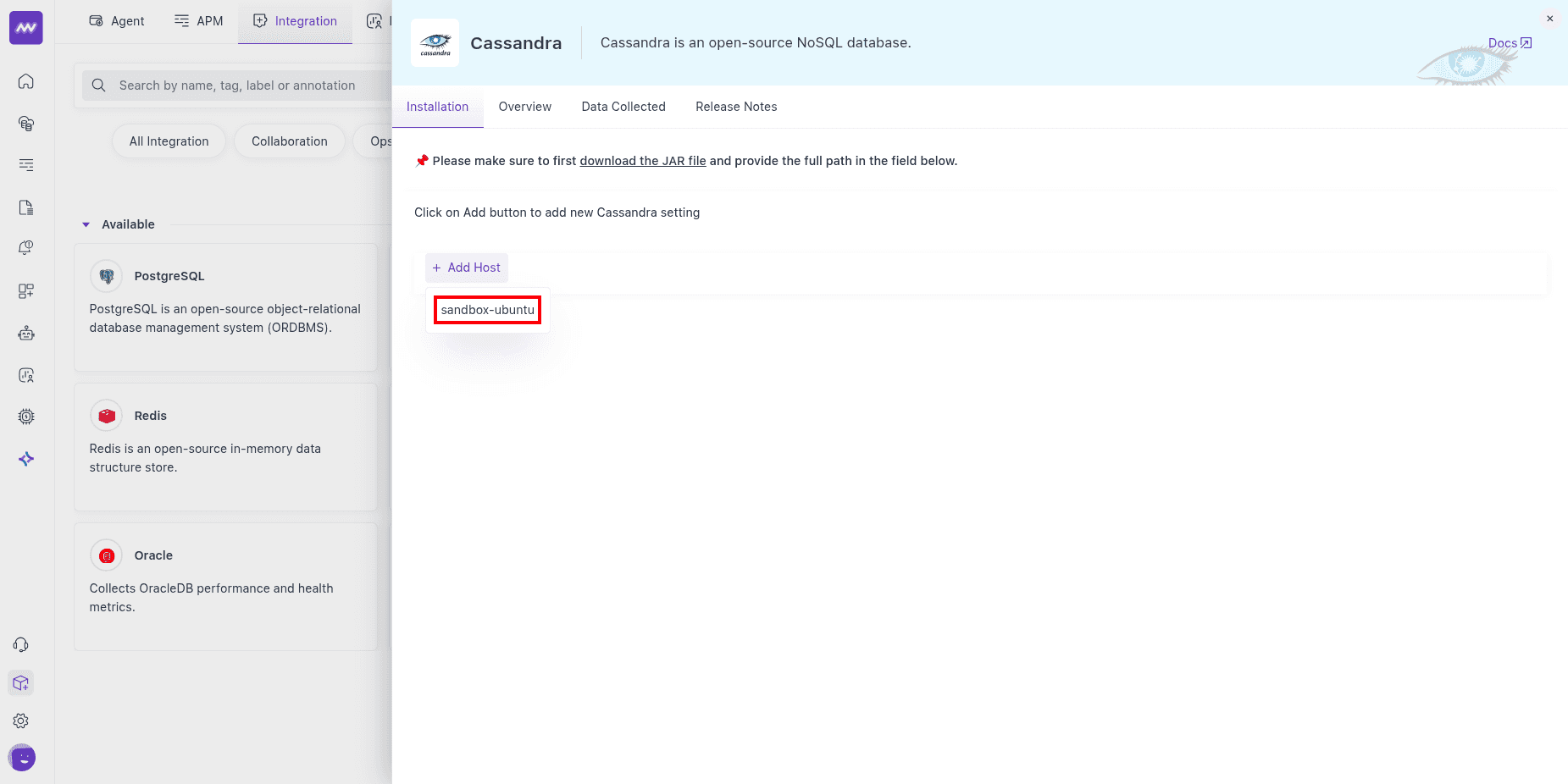

To access Cassandra metrics, choose a host to connect to your Cassandra Cluster

Hosts will only show up in this list if they have a running Host Agent

Step 3: Configure Your Host

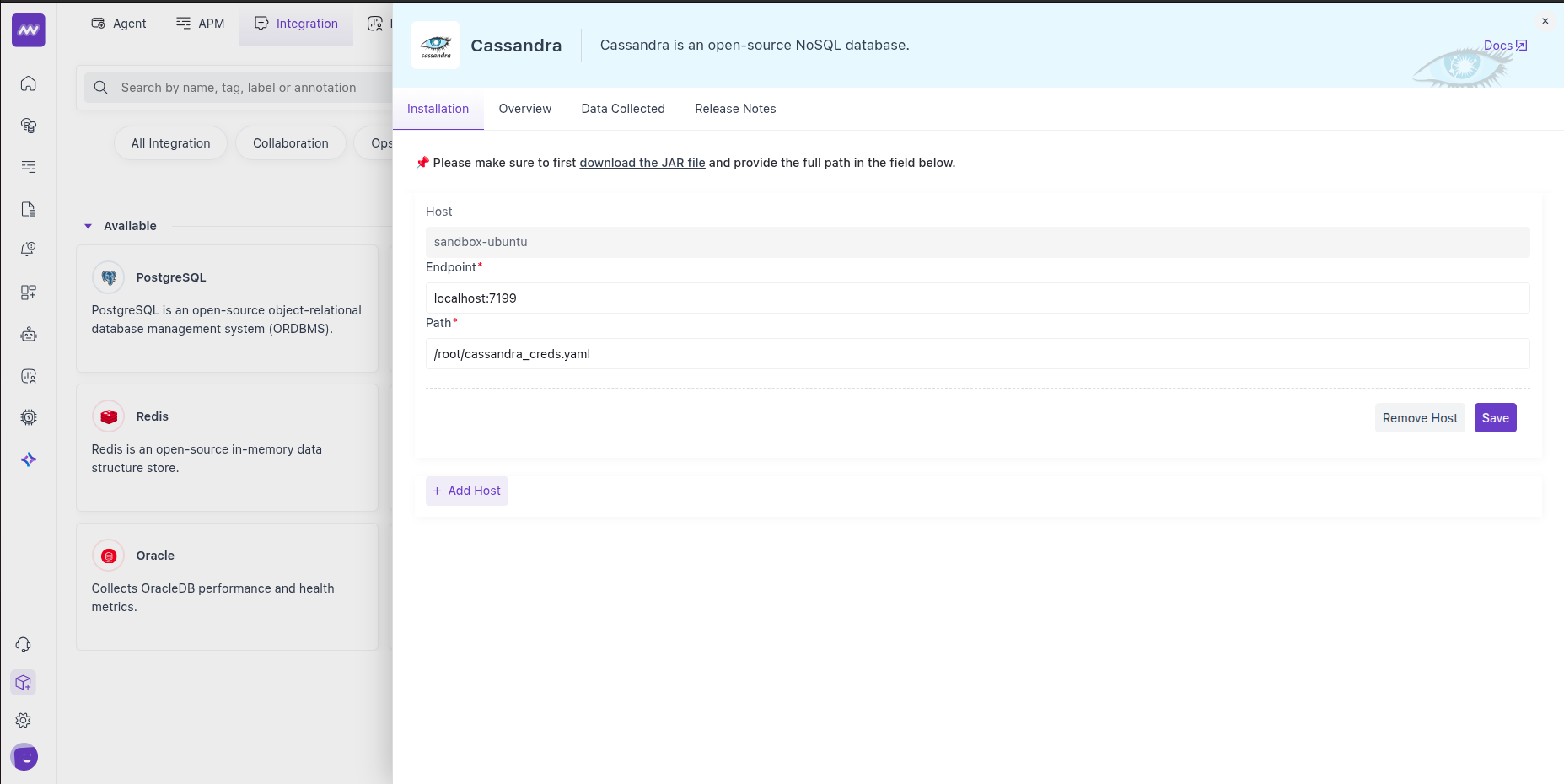

Configure your host to connect to the IP address and JMX port of Cassandra Cluster

The default port for your Cassandra instance is 7199

Visualize Your Data

Default Cassandra Dashboard

Quickly access your Cassandra data with Middleware’s default Cassandra dashboard. Navigate to the Dashboard Builder and select the Cassandra - Metrics Dashboard

Create Cassandra Widgets

Create your own widget from scratch. Navigate to the Dashboard Builder and select the dashboard you would like to create a widget in. Select Add New Widget and choose the cassandra data source.

Learn more about creating your own widgets and dashboards in the Dashboard Builder section.

Metrics Collected

Metrics Name	Description
`cassandra.client.request.count`	Total count of client requests
`cassandra.client.request.error.count`	Count of errors that occurred during client requests
`cassandra.client.request.range_slice.latency.50p`	50th percentile latency for range slice requests
`cassandra.client.request.range_slice.latency.99p`	99th percentile latency for range slice requests
`cassandra.client.request.range_slice.latency.max`	Maximum latency for range slice requests
`cassandra.client.request.read.latency.50p`	50th percentile latency for read requests
`cassandra.client.request.read.latency.99p`	99th percentile latency for read requests
`cassandra.client.request.read.latency.max`	Maximum latency for read requests
`cassandra.client.request.write.latency.50p`	50th percentile latency for write requests
`cassandra.client.request.write.latency.99p`	99th percentile latency for write requests
`cassandra.client.request.write.latency.max`	Maximum latency for write requests
`cassandra.compaction.tasks.completed`	Count of completed compaction tasks
`cassandra.compaction.tasks`	Current count of compaction tasks
`cassandra.storage.load.count`	Count of storage loads
`cassandra.storage.total_hints.count`	Total count of hints stored
`cassandra.storage.total_hints.in_progress.count`	Count of hints currently in progress

Troubleshooting

If you do not see the Integrations Menu in Middleware, that means your account has not been granted Installation permissions. Contact your system administrator to add the Installation permission to your user role in Settings.

Next Steps

Need assistance or want to learn more about Middleware? Contact our support team in Slack.
