PHP

This guide walks you through setting up Application Performance Monitoring (APM) on a PHP application. These instructions can also be found on the Installation page in your Middleware Account. View example code here.

1. Prerequisites#

• Middleware Host Agent (see installation guide here) running on the same machine (for host-based installs). In containers, pass MW_AGENT_SERVICE so your app can reach the agent:
  • Docker: MW_AGENT_SERVICE=172.17.0.1
  • Kubernetes: MW_AGENT_SERVICE=mw-service.mw-agent-ns.svc.cluster.local
• PHP: PHP version 8.0 or above. Verify with php -v.
• Composer: Ensure you have the Composer dependency manager installed to install our APM.
• PECL: PECL is required to install the appropriate extension.

2. Vanilla PHP#

Install OpenTelemetry auto-instrumentation#

• Install the extension:

  sudo pecl install channel://pecl.php.net/opentelemetry-1.0.3

• Enable the extension by adding to your php.ini:

  [opentelemetry]
  extension=opentelemetry.so

  The php.ini file can be found using the following commands based on your Linux distribution:

• Ubuntu/Debian:

  sudo nano /etc/php/<php_version>/cli/php.ini

• CentOS/RHEL:

  sudo nano /etc/php.ini

• Arch Linux:

  sudo nano /etc/php/php.ini

• Web-Serve:

  sudo nano /etc/php/<php_version>/apache2/php.ini

• Finally, verify the installation:

php -m | grep opentelemetry

Install Middleware’s PHP package#

composer update
composer require middleware/agent-apm-php

Then, add the following at the top of your entry script:

require 'vendor/autoload.php';
use Middleware\AgentApmPhp\MwTracker;

(Containers) Connectivity to the Host Agent#

MW_AGENT_SERVICE=<DOCKER_BRIDGE_GATEWAY_ADDRESS>

MW_AGENT_SERVICE=mw-service.mw-agent-ns.svc.cluster.local

Start/stop the tracing scope + hooks#

Start a tracing scope right before your main application code:

Create your tracker before your application code runs, register hooks, and close the scope:
$tracker = new MwTracker('<PROJECT-NAME>', '<SERVICE-NAME>');
$tracker->preTrack();

$tracker->registerHook('<CLASS-NAME-1>', '<FUNCTION-NAME-1>', [
  'custom.attr1' => 'value1',
  'custom.attr2' => 'value2',
]);
$tracker->registerHook('<CLASS-NAME-2>', '<FUNCTION-NAME-2>');

$tracker->postTrack();

Custom logs (optional)#

To ingest custom logs, use the following functions based on desired log severity levels:

$tracker->info("Info Sample");
$tracker->warn("Warn Sample");
$tracker->debug("Debug Sample");
$tracker->error("Error Sample");

3. WordPress (zero-touch script)#

Get the script (from your WP install dir, e.g., /var/www/localhost/htdocs):

curl -O https://install.middleware.io/apm/php/wp-instrument.php

You can also download the script by clicking here.

Run (root/admin):

sudo -E MW_SERVICE_NAME=<your-service-name> php wp-instrument.php

Here:

• MW_SERVICE_NAME optional; default is service-<process id>.
• Docker: you can pass the bridge gateway via MW_TARGET:

  sudo -E MW_TARGET=<DOCKER_BRIDGE_GATEWAY_ADDRESS> php wp-instrument.php

4. Laravel#

One-command installer#

From your Laravel project root:

curl -O https://install.middleware.io/apm/php/laravel-instrument.php \
  && sudo php laravel-instrument.php install

(Downloads prerequisites, installs, and configures the PHP agent.)

You can also download the script manually by clicking here.

Tracing#

Automatically enabled by the script.

Metrics (limited support)#

Enable trace-related metrics by adding:

• Service provider in config/app.php:

  'providers' => [
    // ...
    Middleware\LaravelApm\LaravelApmServiceProvider::class,
  ],

• Middleware in app/Http/Kernel.php (after tracing middleware if used):

  protected $middleware = [
    // ...
    \Middleware\LaravelApm\Middleware\MetricsMiddleware::class,
    ];

Logging#

The package integrates with Laravel’s logging; configure your preferred driver, and it will forward to the Middleware automatically.

Environment#

Set the following variables in your environment and restart your app to instrument your app:

OTEL_PHP_AUTOLOAD_ENABLED=true
OTEL_SERVICE_NAME=your-service-name
OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:9320

For frontend↔backend correlation:

OTEL_PROPAGATORS=baggage,tracecontext,b3multi

(9320 is the local agent’s OTLP endpoint; same values are used in Forge/Beanstalk guides.)

5. Azure Pipelines#

The Azure Pipelines continuous integration and continuous delivery (CI/CD) infrastructure helps you build, deploy, and test your PHP projects. For information on setting up your PHP project with Azure Pipelines and Azure DevOps Services, learn more here.

1 Configure OpenTelemetry Extension#

Add the following code to your .ini file located in the /home/html/ini directory of your Azure account:

extension=opentelemetry.so

The dotnet-plugin release notes confirm .NET 6+ compatibility and the Middleware.Logger.Logger API for custom logs.

2 Add Configuration to Azure#

Navigate to Application Settings in your Azure PHP project account and select New application setting. Add the following Name and Value to the New application setting:

Name: PHP_INI_SCAN_DIR
Value: /home/html/ini

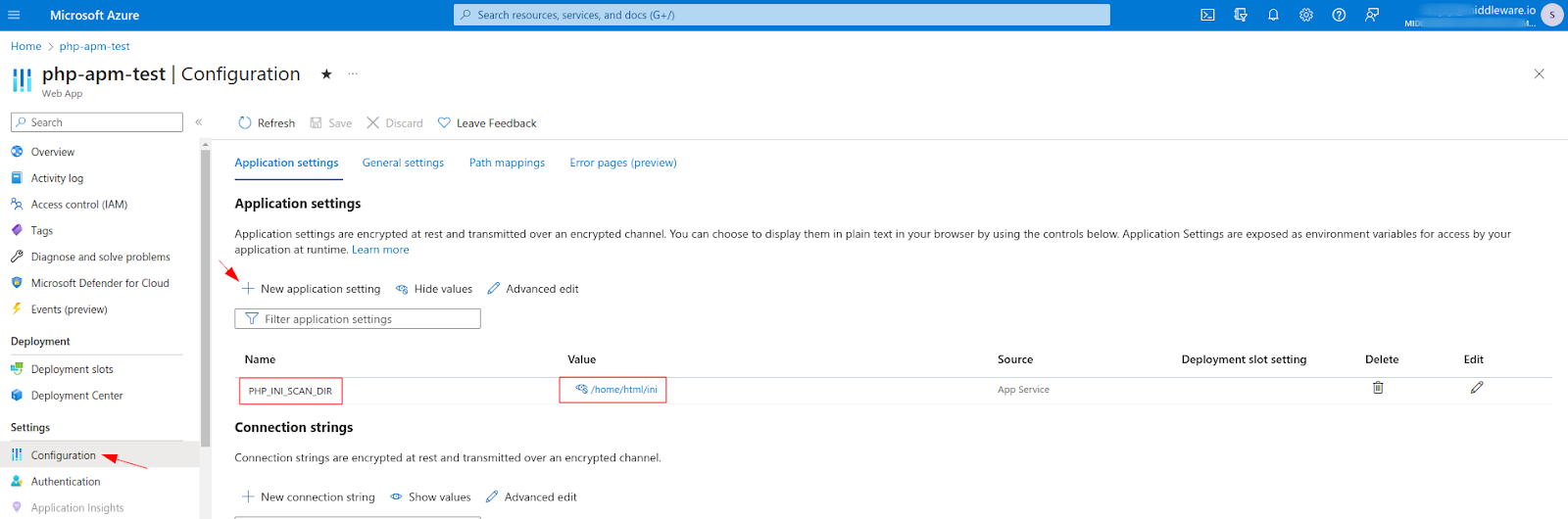

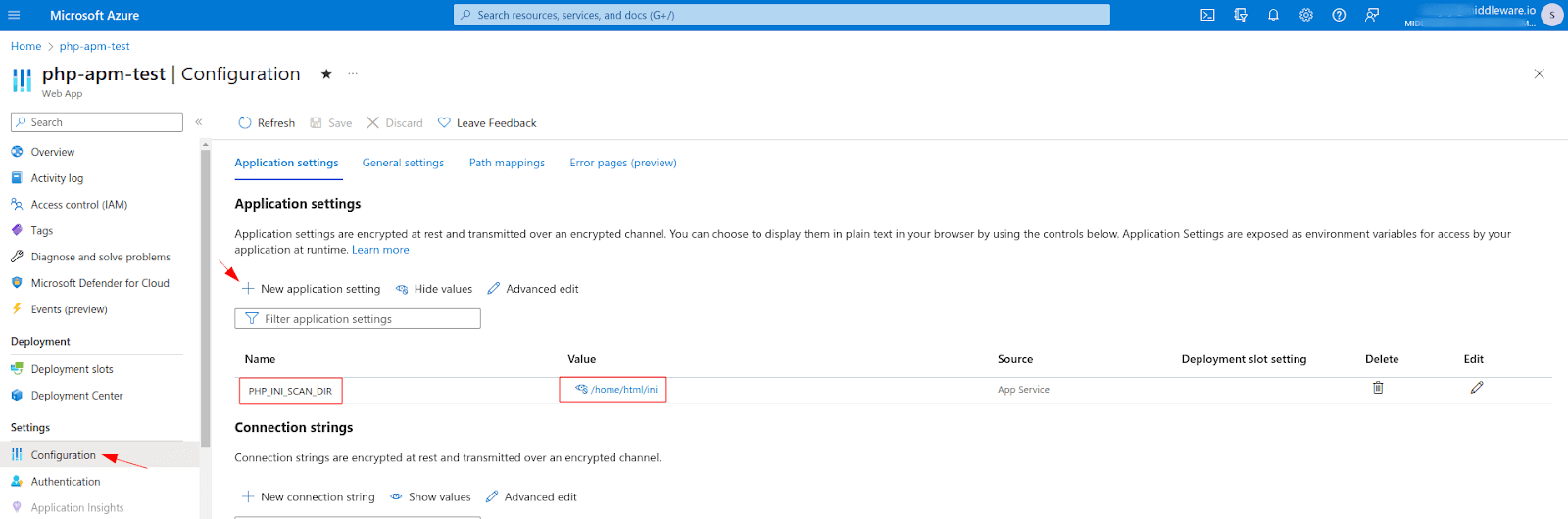

Your configuration should look like the following:

3 Create Your Build Pipelines#

Update your build pipeline by adding the following code to the azure-pipelines.yml file:

The below build pipeline includes installation steps for Opentelemetry and the middleware/agent-apm-php

trigger:
- master

variables:
  # Azure Resource Manager connection created during pipeline creation
  azureSubscription: 'XXXXXXXXXXXXXXXXXXXX'

  # Web app name
  webAppName: 'php-apm-test'

  # Agent VM image name
  vmImageName: 'ubuntu-latest'

  # Environment name
  environmentName: 'php-apm-test'

  # Root folder under which your composer.json file is available.
  rootFolder: $(System.DefaultWorkingDirectory)

stages:
- stage: Build
  displayName: Build stage
  variables:
    phpVersion: '8.2'
  jobs:
  - job: BuildJob
    pool:
      name: Default
      vmImage: $(vmImageName)
    steps:
    - script: |
        sudo update-alternatives --set php /usr/bin/php$(phpVersion)
        sudo update-alternatives --set phar /usr/bin/phar$(phpVersion)
        sudo update-alternatives --set phpdbg /usr/bin/phpdbg$(phpVersion)
        sudo update-alternatives --set php-cgi /usr/bin/php-cgi$(phpVersion)
        sudo update-alternatives --set phar.phar /usr/bin/phar.phar$(phpVersion)
        php -version
      workingDirectory: $(rootFolder)
      displayName: 'Use PHP version $(phpVersion)'

    - script: composer install --no-interaction --prefer-dist --ignore-platform-reqs
      workingDirectory: $(rootFolder)
      displayName: 'composer install'

    - script: |
        # Check if the Opentelemetry package is already installed
        if [ "$(pecl list | grep opentelemetry)" ]; then
          echo "Opentelemetry package is already installed. Skipping this installation."
        else
          sudo pecl install channel://pecl.php.net/opentelemetry-1.0.0beta3
        fi
      workingDirectory: $(rootFolder)
      displayName: 'Install Opentelemetry Extension'

    - script: |
        # Check if the Opentelemetry package is enabled
        if php -m | grep opentelemetry; then
          echo "Opentelemetry extension is enabled."
        else
          echo "Opentelemetry extension is not enabled. Please add it to your php.ini file: extension=opentelemetry.so"
          exit 1
        fi
      workingDirectory: $(rootFolder)
      displayName: 'Verify Opentelemetry Extension'

    - script: composer update
      workingDirectory: $(rootFolder)
      displayName: 'Update Composer'

    - script: |
        # Check if the Middleware PHP APM-Package is already listed in the composer
        if composer show | grep middleware/agent-apm-php; then
          echo "Middleware APM-Package is already listed in the composer file. Skipping this installation."
        else
          composer require middleware/agent-apm-php
        fi
      workingDirectory: $(rootFolder)
      displayName: 'Install Middleware PHP APM-Package'

    - task: ArchiveFiles@2
      displayName: 'Archive files'
      inputs:
        rootFolderOrFile: '$(System.DefaultWorkingDirectory)'
        includeRootFolder: false
        archiveType: zip
        archiveFile: $(Build.ArtifactStagingDirectory)/$(Build.BuildId).zip
        replaceExistingArchive: true

    - task: PublishBuildArtifacts@1
      inputs:
        PathtoPublish: '$(Build.ArtifactStagingDirectory)'
        ArtifactName: 'drop'
        publishLocation: 'Container'

4 Check Your Pipeline#

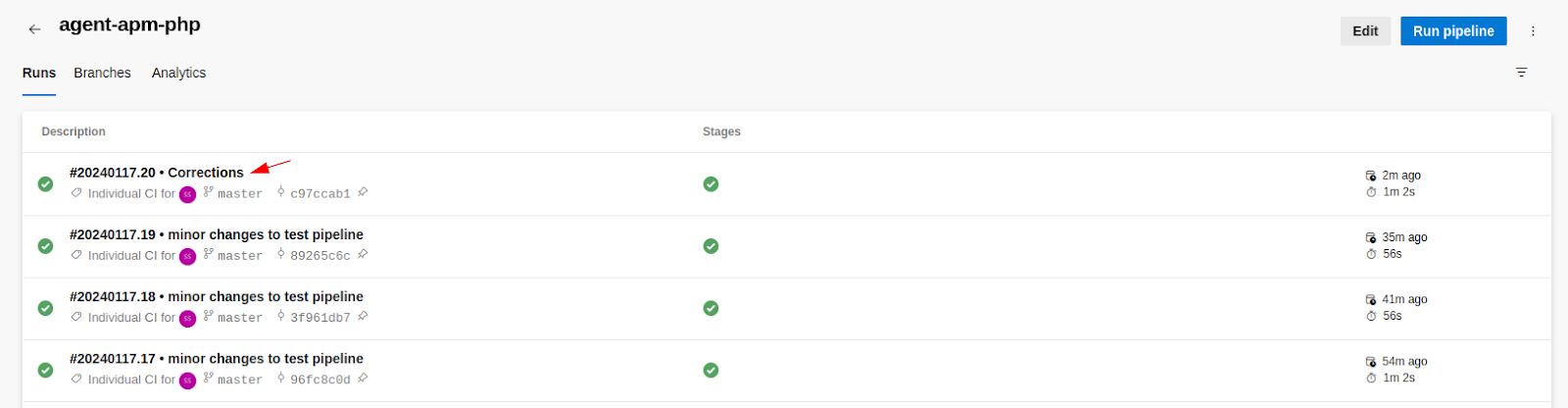

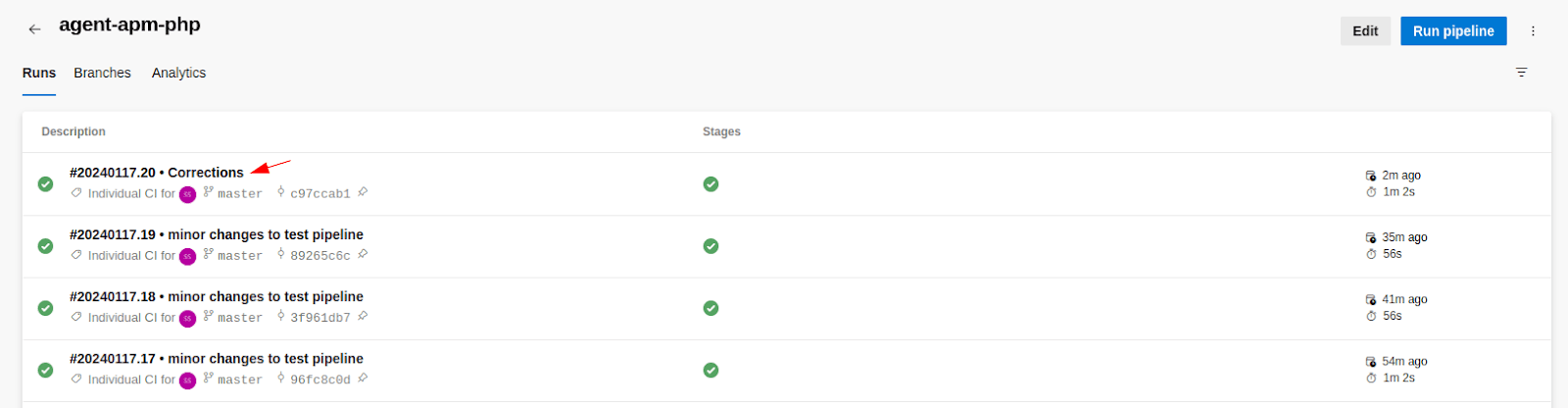

The PHP Agent is now set up to execute a CI/CD approach, following the build pipeline configuration, whenever new code is pushed to the production environment. Your output should look like the following:

6. View your data#

After deployment, give it a couple of minutes and check:

• Traces (end-to-end spans, latency, errors)
• Logs (from the PHP tracker and, for Laravel, app logs)
• Continuous Profiling: not available for PHP yet (available for other APMs).

7. Environment variables#

8. Troubleshooting#

Below we cover a few common errors and their solutions.

pecl: command not found error

If you receive a pecl: command not found error, run the following command:

Shell

Shell

sudo apt-get update
apt-get install php-pear php8.1-dev

Broken Dependency Issue

If you receive any broken dependency issues, including errors like libpcre2-dev : Depends: libpcre2-8-0 / libpcre2-16-0 / libpcre2-32-0, run the following command:

Shell

Shell

sudo apt --fix-broken install

ERROR: ‘phpize’ failed error

If you receive an ERROR: ‘phpize’ failed error, run the following commands:

Shell

Shell

sudo apt-get update
sudo apt-get install php8.1-dev

sudo apt-get update
sudo pecl channel-update pecl.php.net
